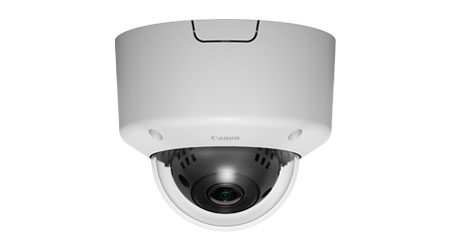

Canon VB-M640V


Keep every angle covered



  • High quality images day or night with 1.3 MP resolution
  • Superb low light performance and ultra wide coverage
  • Quick and easy installation with remote PTRZ set up
  • Additional Intelligent Intruder detection
  • Enhanced bandwidth management and bit rate control

Detaillierte Funktionen

Schau dir doch Canon VB-M640V genauer an

High quality images day or night with 1.3 MP resolution

The compact VB-M640V is an IK10 vandal-resistant Fixed Dome camera that effortlessly captures everything in high quality 1.3 MP images day or night. Designed for indoor installation in a wide range of environments it features a Super-UD lens that provides maximum IR support and true Day and Night switching.

Superb low light performance and ultra wide coverage

The wide aperture f/1.2-1.8 Super-UD lens with 2.4 x optical zoom delivers bright clear images even in low light environments, while the ultra wide 111.5° horizontal angle of view is ideal for monitoring wider areas. The IR Corrected lens not only provides clean sharp images day or night but also improves low light performance. Minimum subject illumination is 0.02 lux (colour) to 0.001lux (mono). Image enhancing Haze Compensation automatically adjusts the image contrast to bring hazy scenes in to clear view.

Quick and easy installation with remote PTRZ set up

The VB-M640V offers reduced installation times and cost thanks to an improved PTRZ lens mechanism with increased shock and vibration resistance, which allows quick and easy remote set up of camera angles from a PC.

Enhanced bandwidth and bit rate control

Enjoy improved network bandwidth management and enhanced bit rate control thanks to optimised H.264 encoding and ADSR (Area-specific Data Size Reduction) technology. ASDR allows you to set the pre-configured image quality to 8 distinct areas within the field of view to lower the cameras H.264 bit rate.

Additional intelligent intruder detection

The Industry leading range of inbuilt analytics functions, which can automatically alert operators to alarming situations and activate recording, has been enhanced with the addition of Intruder detection. Intruder Detection identifies moving objects of a minimum specified size entering an out of bounds area and remaining there

Allgemeine Daten

Erfahre mehr über Canon VB-M640V, die Funktionen und Möglichkeiten.


Effiziente Netzwerk-Verarbeitung

Digic DV III

Sorgt für Bildqualität und -steuerung

1.3 Mega Pixel

Hochwertige Bilder


Zertifizierter Vandalismusschutz

Auto DayNight

Entfernbarer IR-Filter

Intelligent Function


Intrusion Detection

Bereichsspezifischer Schutz

Power over Ethernet

PoE (Stromversorgung über LAN-Anschluss)


Mit Steuerung der Bandbreite


Dezentrale Aufzeichnung


Management von Mehr-Kamera-Systemen

  • VB-M640V Kamera
  • Setup CD-ROM
  • Deckenplatte
  • Befestigungsschrauben
  • Sicherungsdraht und Befestigungsschrauben
  • Schraubenschlüssel
  • Schablone
  • Stromanschluss
  • Audiokabel
  • Installationsanleitung
  • Garantiekarte
  • Informationsbroschüre zur Garantie
  • Verpackungen

Rechner für den Blickwinkel (AOV)

Rechner für den benötigten Speicherplatz (RDS)

Kamera-Layout Simulator (CLS)
