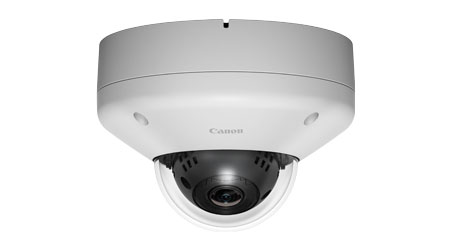

Canon VB-M641VE

VB-M641VE

Keep every outdoor angle covered

VB-M641VE

Vorteile

  • High quality images day or night with 1.3 MP resolution
  • Superb low light performance and ultra wide coverage
  • Outdoor-ready with vandal and environmental protection
  • Extreme low start up temperature and operation
  • Easy installation plus enhanced intelligent detection

Detaillierte Funktionen

Schau dir doch Canon VB-M641VE genauer an

High quality images day or night with 1.3 MP resolution


Protect your site with high quality, detailed images day and night thanks to a 1.3 MP high sensitivity CMOS sensor and true Day and Night switching. Optimised H.264 bit rate and ADSR technology improve bandwidth control and allow operators to freely define areas of the scene where the best quality imaging is needed.

Superb low light performance and ultra wide coverage


The wide aperture f/1.2-1.8 Super-UD lens with 2.4 x optical zoom delivers bright clear images even in low light environments, while the ultra wide 111.5° horizontal angle of view is ideal for monitoring wider areas. The IR Corrected lens not only provides clean sharp images day or night but it also improves low light performance. Minimum subject illumination is 0.02 lux (colour) to 0.001lux (mono). Image enhancing Haze Compensation automatically adjusts the image contrast to bring hazy scenes in to clear view.

Easy installation plus enhanced intelligent detection


The VB-M641VE features a simple pigtail cable connection and PTRZ remote set up, for easy configuration and modification of camera angles from a PC, to help reduce installation times and cost. Connections include Audio and Alarm inputs and operators can easily identify alarming situations thanks to a range of inbuilt intelligent detection functions, which can automatically activate recording. These include Intruder Detection, which identifies moving objects entering a specified area, and Scream Detection, which recognises abnormal human sounds like screams or yells.

Outdoor-ready with vandal and environmental protection


The VB-M641VE is fully outdoor ready and vandal resistant. It offers IK10 shock resistance certification as well as IP66 certification for extensive weatherproofing and environmental protection. Its robust construction and innovative design is also compliant with NEMA250 Type4X and IEC 60950-1/22 standards, m

Allgemeine Daten

Erfahre mehr über Canon VB-M641VE, die Funktionen und Möglichkeiten.

DIGIC NET II

Effiziente Netzwerk-Verarbeitung

Digic DV III

Sorgt für Bildqualität und -steuerung

1.3 Mega Pixel

Hochwertige Bilder

IK10

Zertifizierter Vandalismusschutz

All weather Model

Erweiterter Witterungsschutz

Auto DayNight

Entfernbarer IR-Filter

Intelligent Function

Videoanalyse-Funktionen

Intrusion Detection

Bereichsspezifischer Schutz

Scream Detection

Geräuscherkennung

Power over Ethernet

PoE (Stromversorgung über LAN-Anschluss)

ADSR

Mit Steuerung der Bandbreite

Linked Event

Spezifizierung der Alarmauslösung

SD Card

Dezentrale Aufzeichnung

CCMT

Management von Mehr-Kamera-Systemen

  • VB-M641VE Kamera
  • Setup CD-ROM
  • Deckenplatte
  • Befestigungsschraube
  • Sicherungsdraht und Befestigungsschrauben
  • Schraubenschlüssel
  • Schablone
  • Stromkabel
  • I/O Schnittstellenkabel
  • Installationsanleitung
  • Garantiekarte
  • Informationsbroschüre zur Garantie
  • Verpackungen

Rechner für den Blickwinkel (AOV)

Rechner für den benötigten Speicherplatz (RDS)

Kamera-Layout Simulator (CLS)
